Restaurant

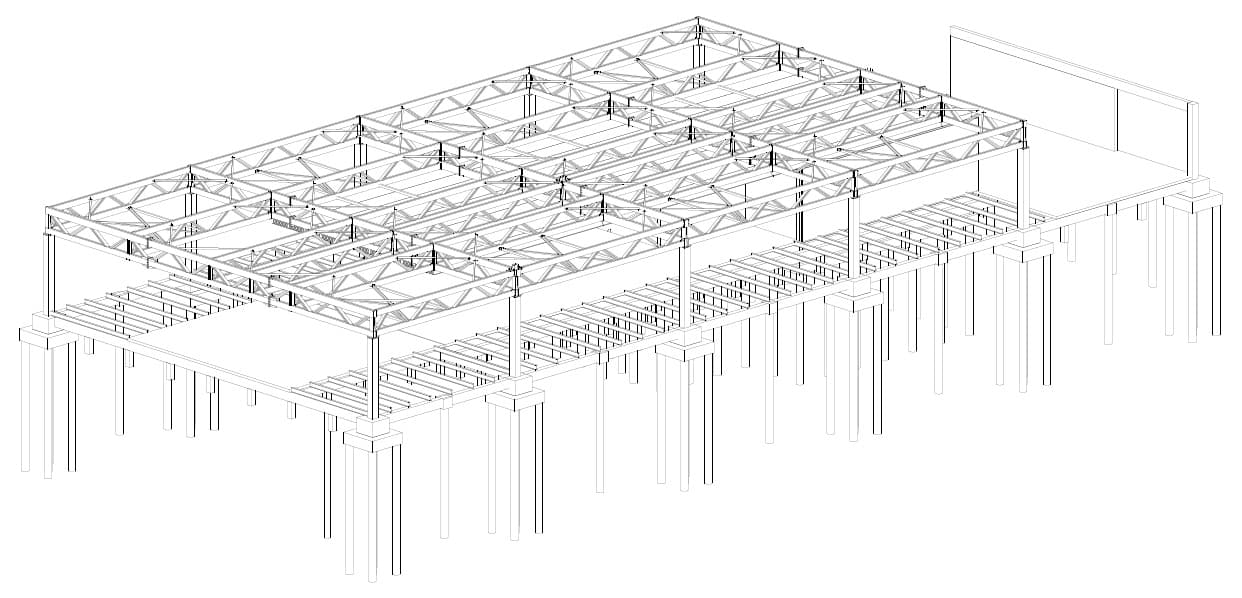

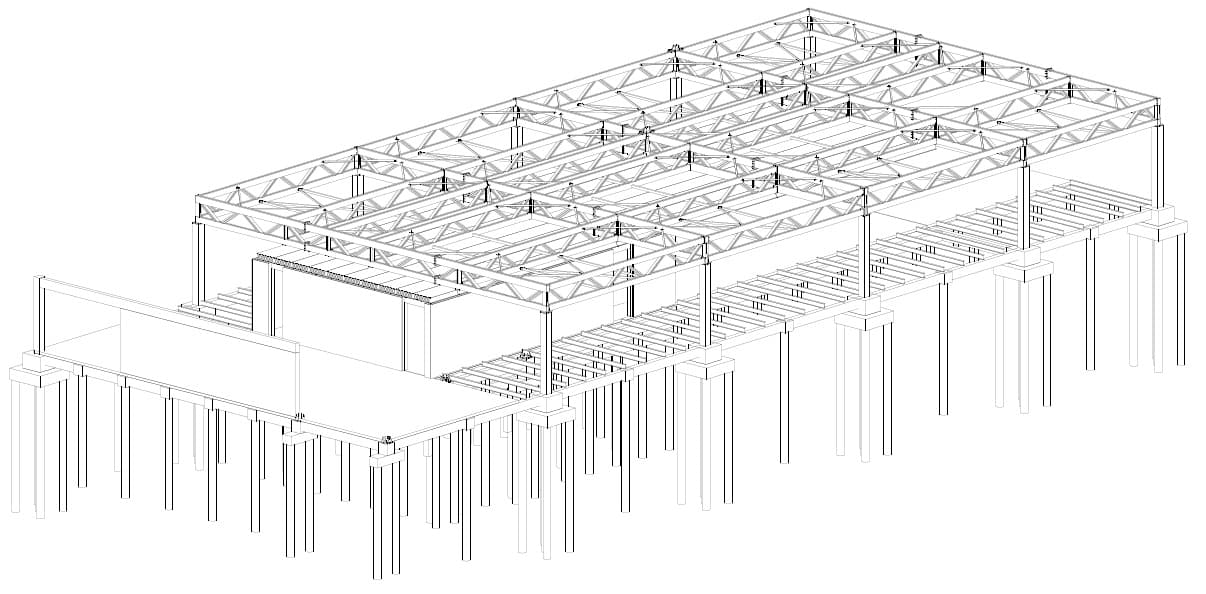

The restaurant is covered with metal trusses 24m with a height of only 1400mm, which are located at 12m intervals and rest on granite columns of a large section (approximately 13001300mm). There are no vertical beams on the columns, and a canopy support (canopy width 6m) in the shape of an ellipse in plan with dimensions in plan of 51108m rests on one of the trusses. The design of the frame was made taking into account the features of the installation due to the presence of a lake and the specifics of the soil.
